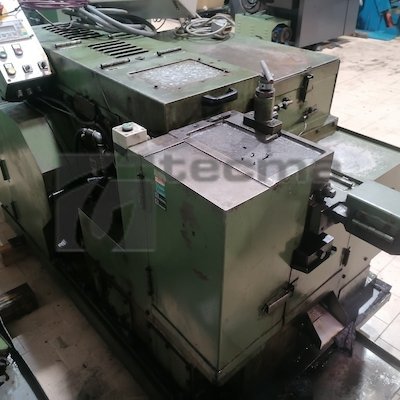

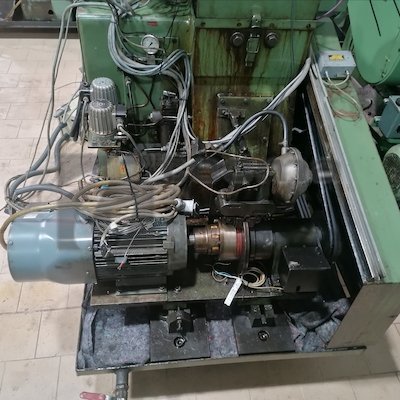

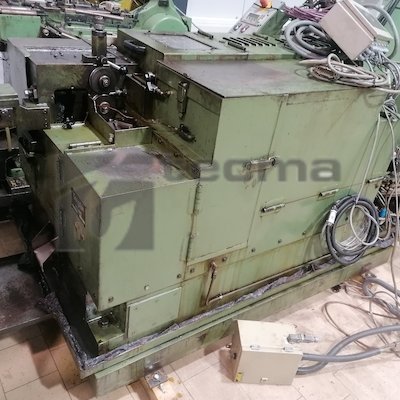

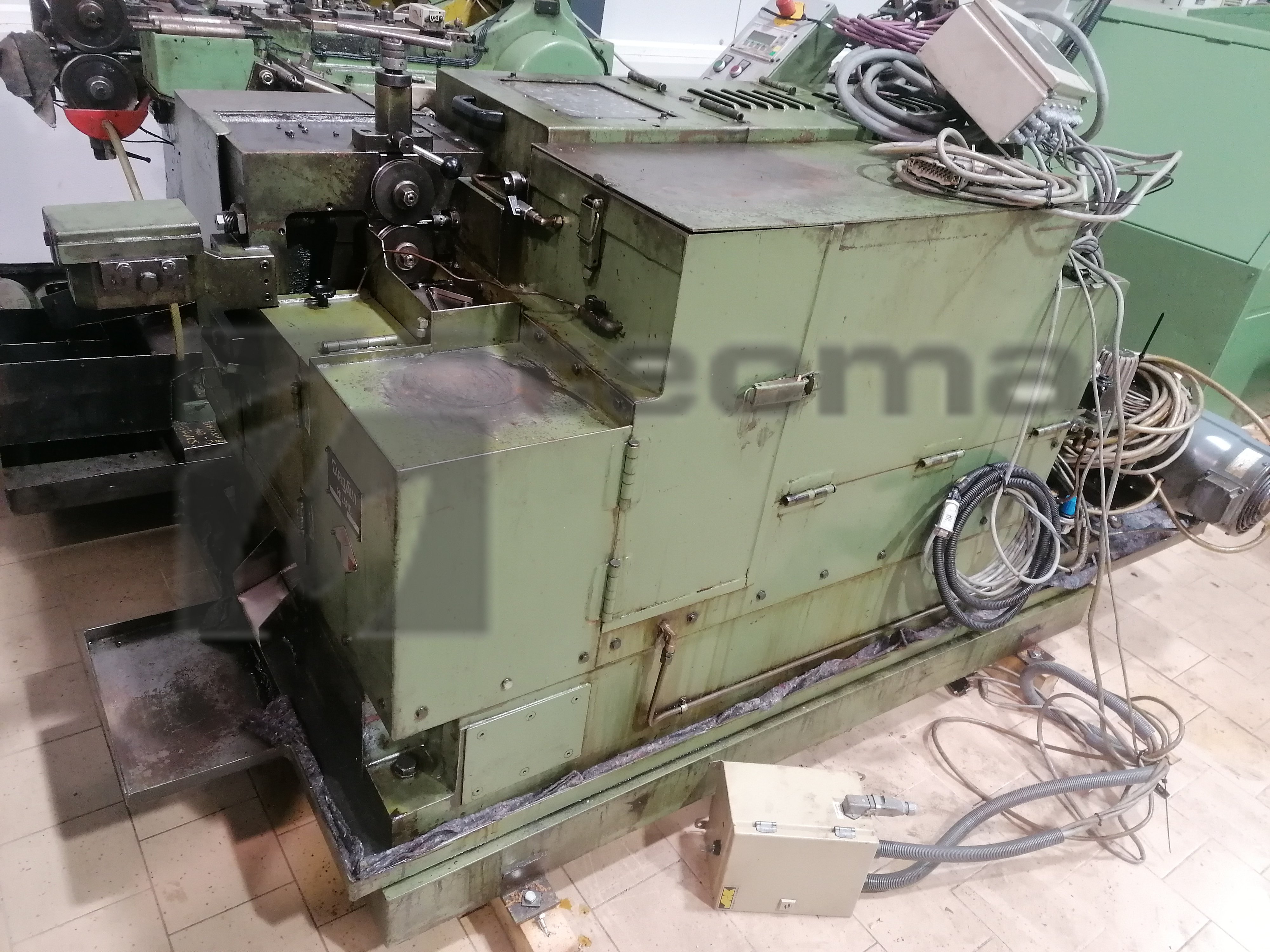

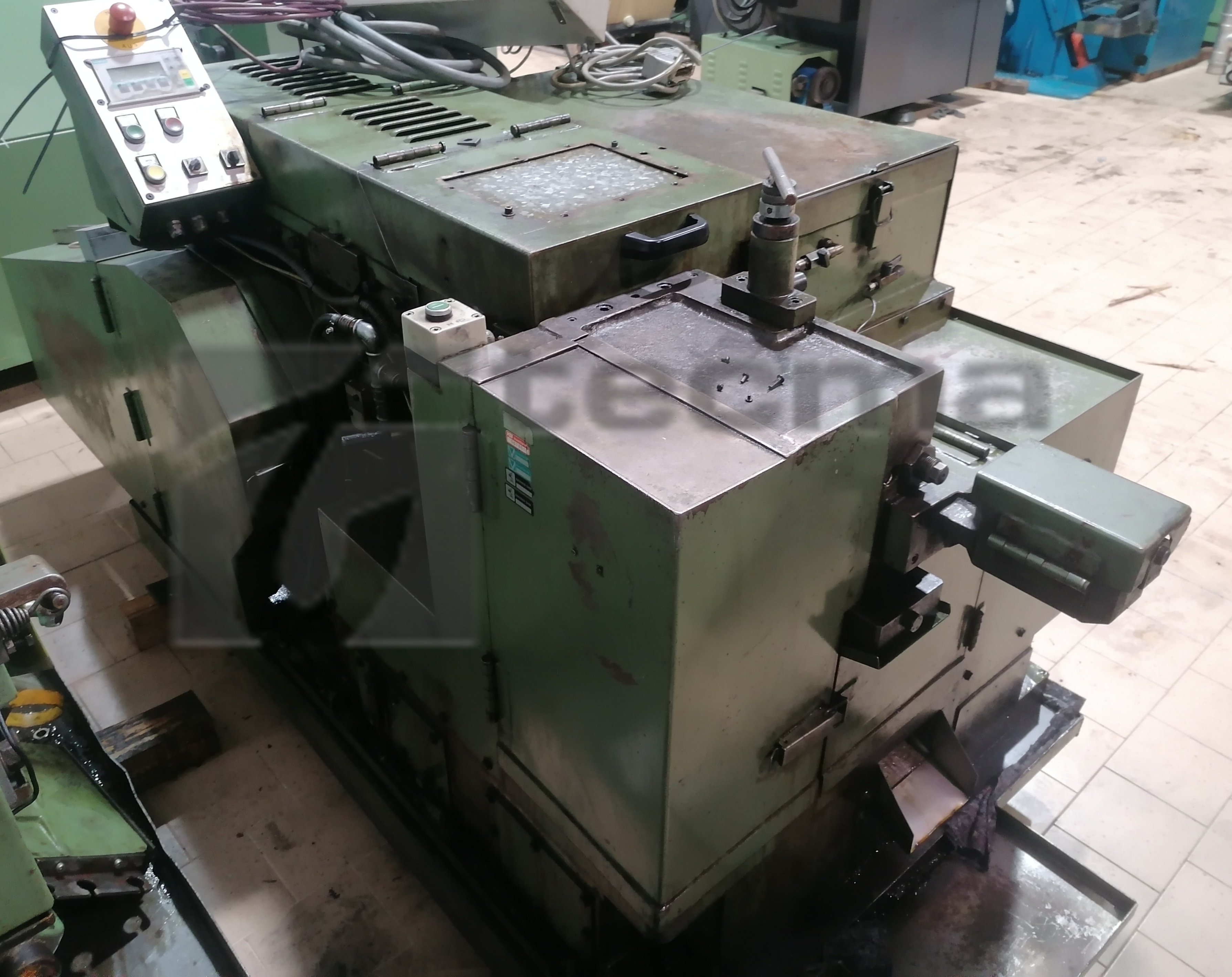

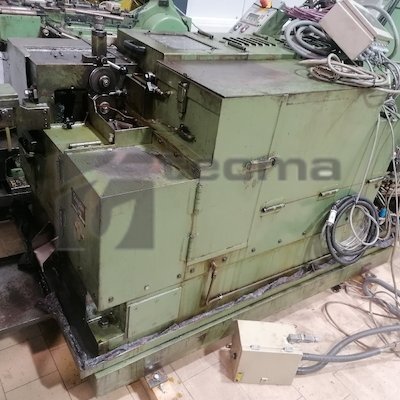

RF 476 SV Double Blow Cold Header

click on the figure to zoom it out
Number: 1W60113

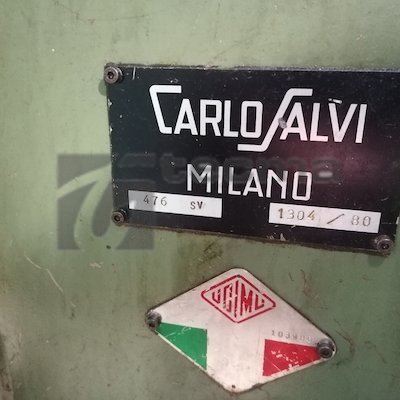

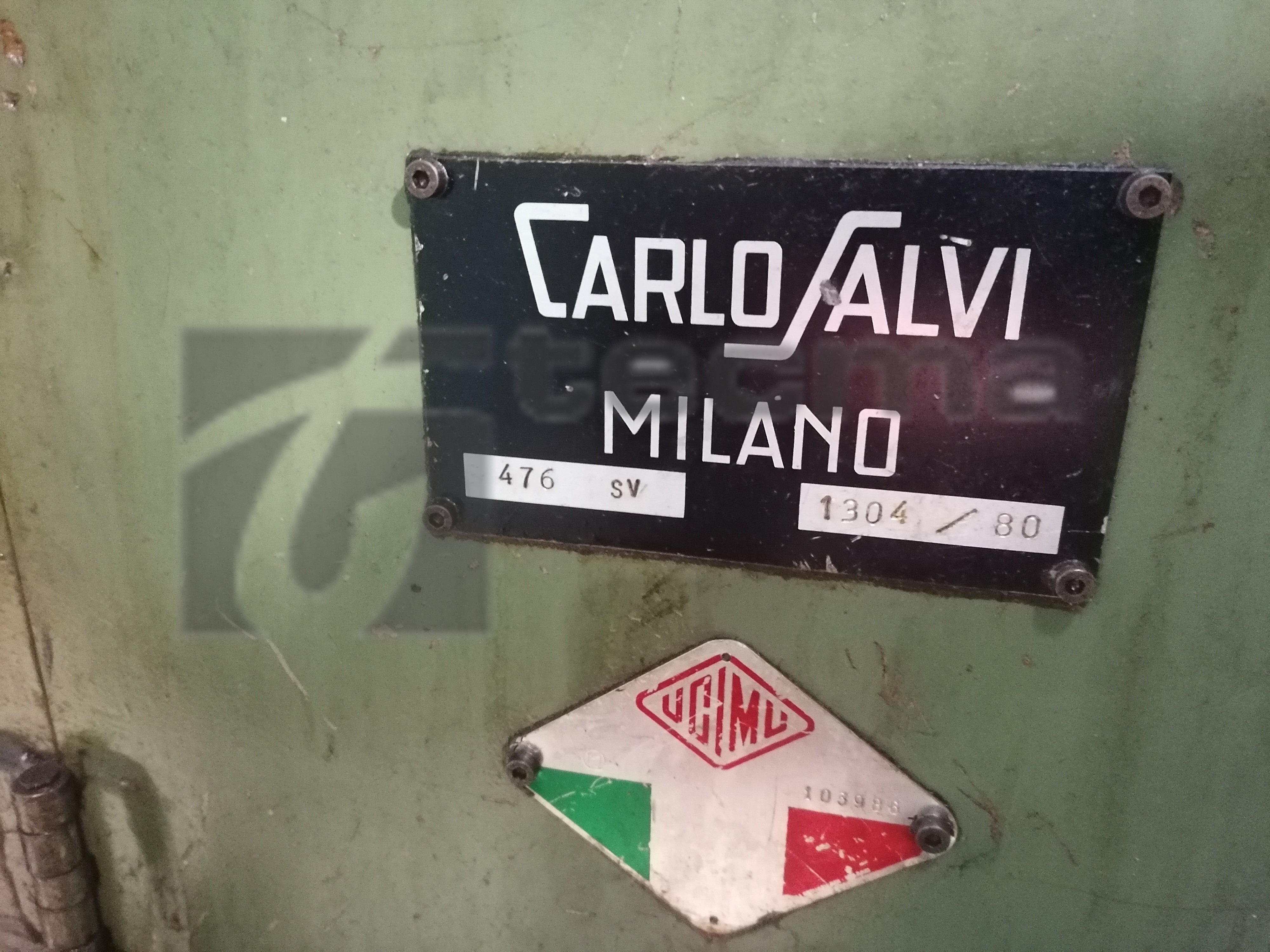

Manufacturer: SALVI
Dies: 1
Max. Ø: 4,76 mm
Max.Shaft Length: 45 mm
Max pieces per min.: 470

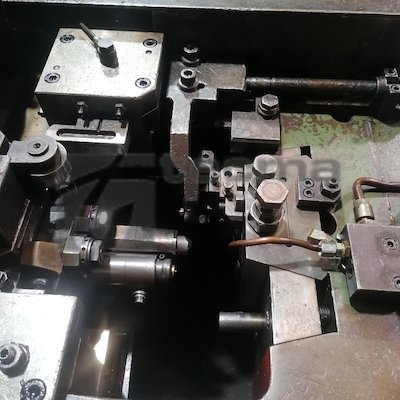

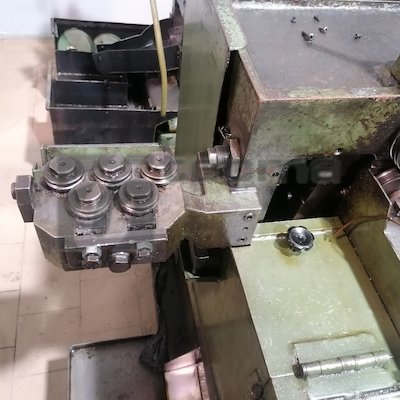

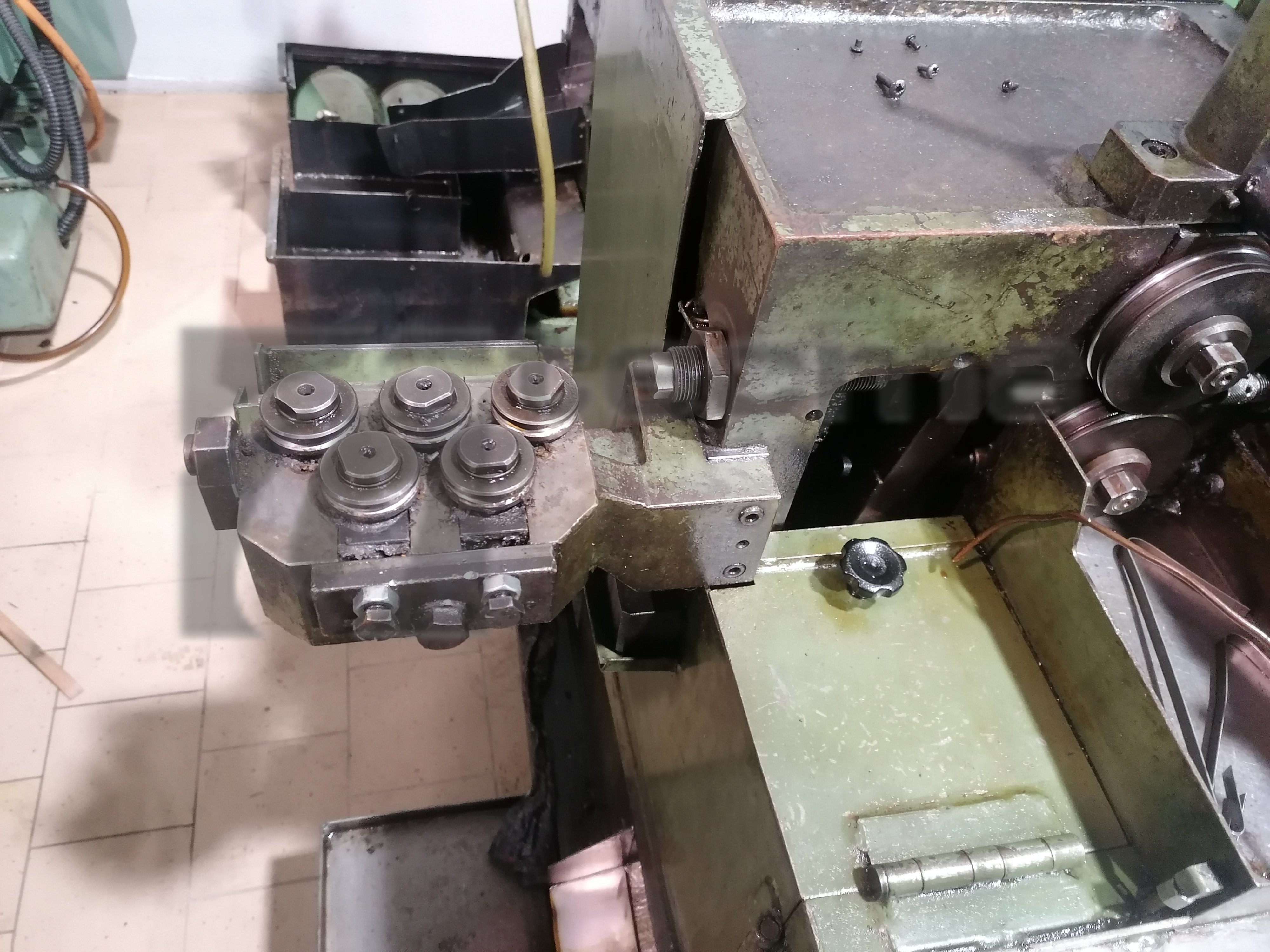

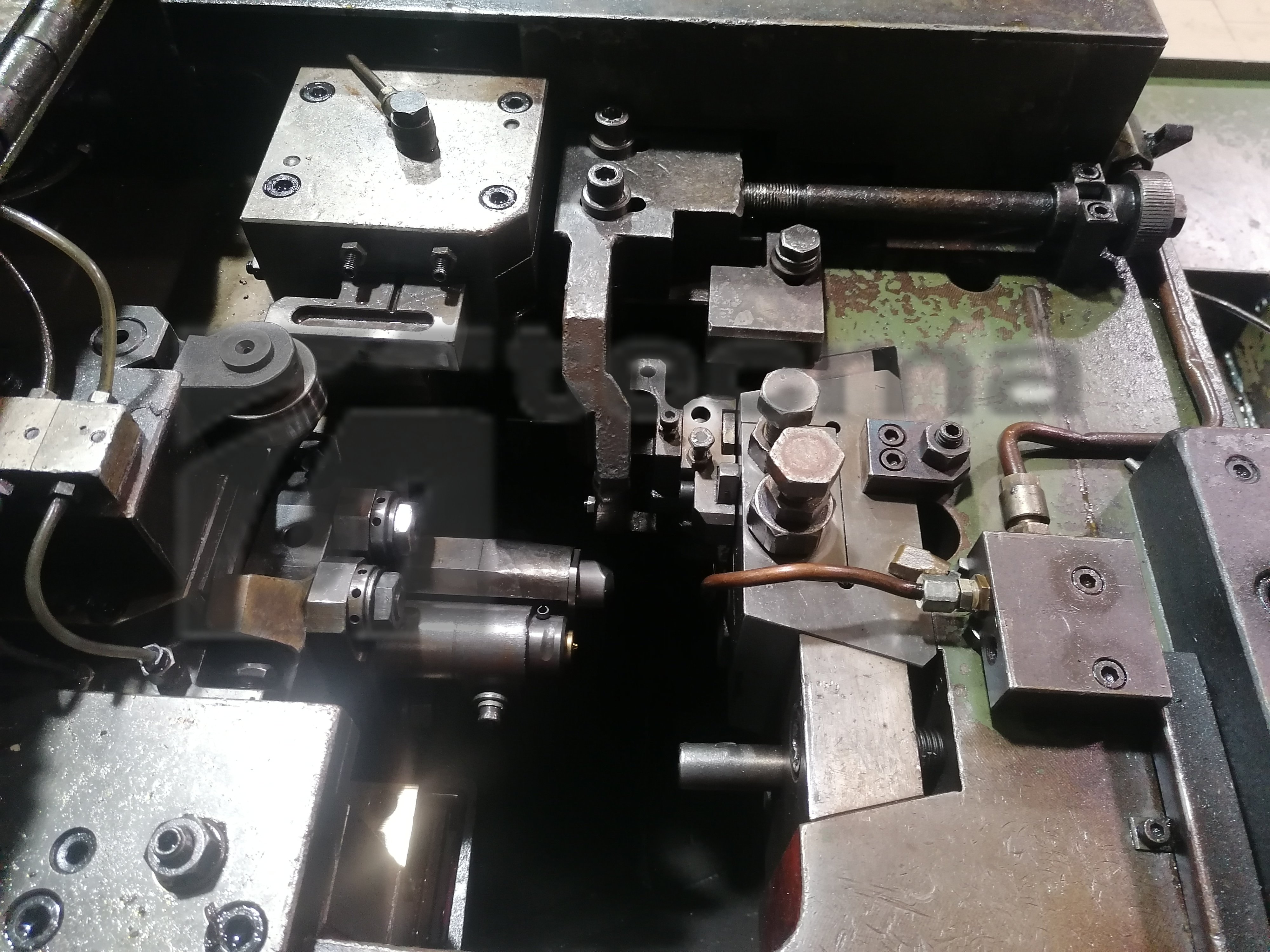

Other information: Used Carlo Salvi 476 SV Double Blow Cold Header in good condition. Semi tubular rivet type, one-die, two-blow, high speed cold heading machine with toggle action heading slide, die kick out advancing and face wiper mechanisms, to cut off wire of 4,76 mm diameter, and produce semi tubular rivets with shanks up to 40 mm (semitubular rivets) or 45 mm (solid rivets) in length, at production speeds of up to 450 pieces/minute. Please contact Tecma GmbH for more information

Send inquiry
