AOT 4B, 2 Blow 2 Die Cold Header

click on the figure to zoom it out

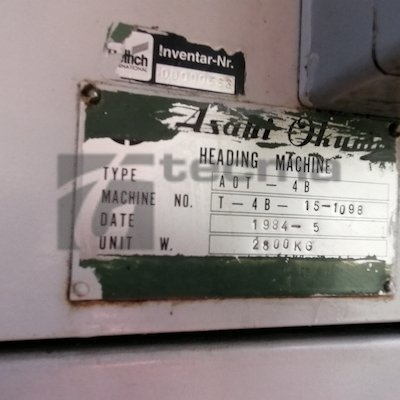

Number: 1W60091
Manufacturer: ASAHI OKUMA
Dies: 2x2
Built new: 1984
Max. Ø: 4 mm
Max.Shaft Length: 25 mm
Max pieces per min.: 400
Other information: This high-speed header uses two independently adjustable punches and dies with unique transfer and extrusion ability. One additional die allows for trapped or open extruding in the first die. Two dies in one machine allows a production of a wide variety of parts including flanged bolts, stepped parts, shoulder rivets, hollow rivets as well as other parts with complex configurations and yet requiring close tolerances which are difficult to make with two blows in one die. Please contact Tecma GmbH for further information
